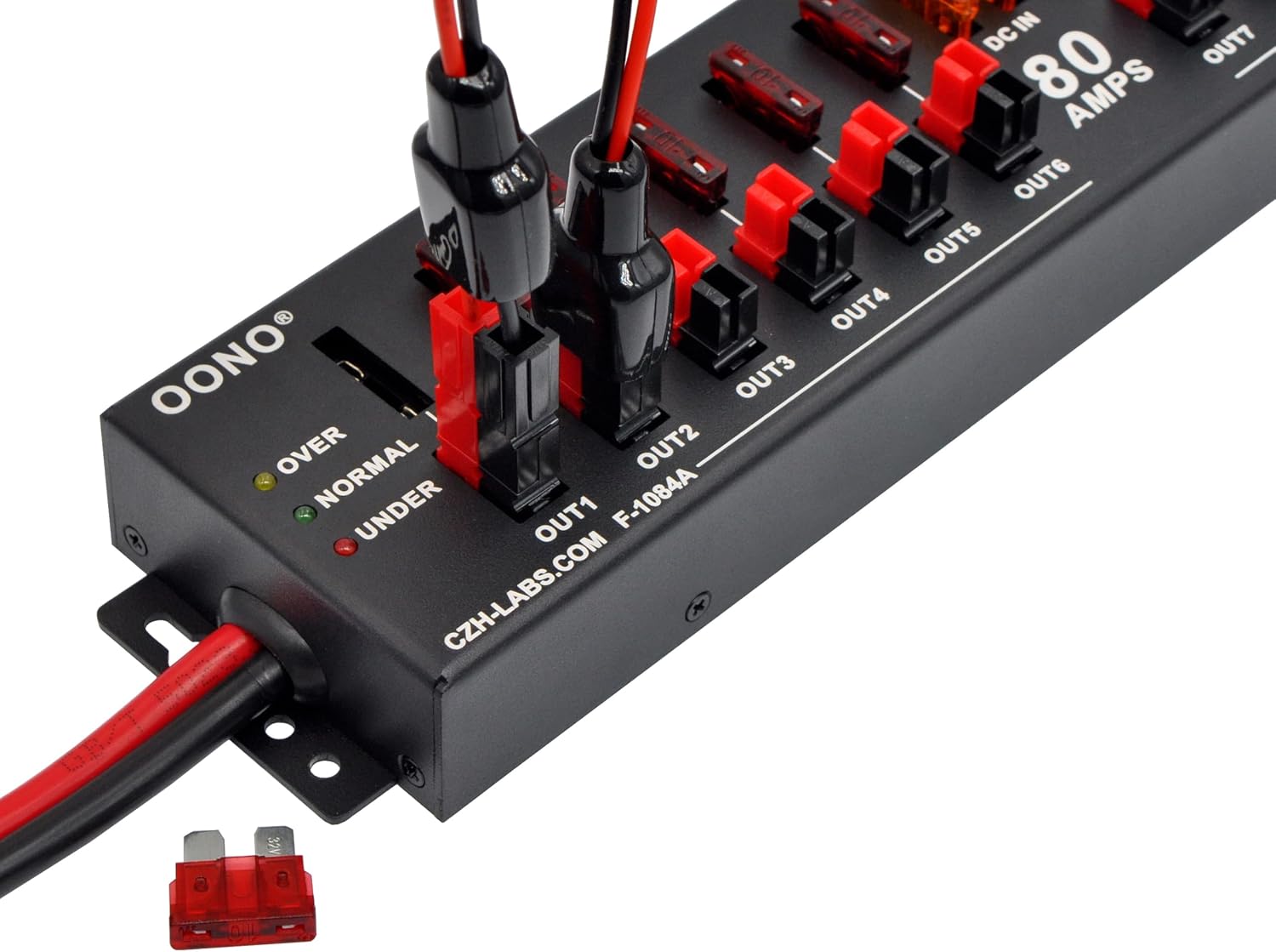

Wired 12 Port DC Power Splitter Distribution Module, with Over-Voltage Under-Voltage Indicators and Buzzer Alarm

Features: 1, Operating voltage: 6 to 20VDC, No-load quiescent current: 2.7mA (at 13.8V). 2, Input port: maximum input current 80 Amps, with dual 40 Amp fuses in parallel. 3, Output port: 12 output ports. Factory installed 10 Amp ATO blade fuses. High-quality fuse holder, you can very easy to replace fuse from the outside, ATC/ATO auto fuses are easy to get and are available in 10 values from 1 to 40A. 4, Voltage over (15.0V) and under (11.5V) LED indicators, and buzzer audio alarm for over voltage or under voltage. if you do not want to hear the alarm, you can open the aluminum case to remove the CN14 buzzer pin jumper. 5, Red(+) and Black(-) colors DC input cable, length 1.5m / 5ft. Conductor section diameter 10mm square (approximately equivalent to 7AWG). 5/16 (8.4mm) ring terminals. 6, Packing list: 1x F-1084A distribution module, 12x black connector housings, 12x red connector housings, 12x PVC cover flame retardant sleeve, 24x silver plated copper 30A 14-12AWG power contacts. In addition, 4 spare fuses of each type (3A, 5A, 15A, 20A, and 30A) are included to meet your various load requirements. 7, Overall dimensions (maximum, w/o cables): L 298mm x W 68mm x H 40.7mm / 11.73" x 2.68" x 1.6". Weight: 790g / 27.9 oz. 8, Enclosure: High quality aluminum enclosure, thickness 1.5mm / 0.06". Support screw mount, wall mount, of course can also be placed on the desktop. If you purchase together our CASE-015 DIN adapter bracket, it can also be installed on 35mm, 32mm or 15mm DIN rail.

• Operating voltage: 6 to 20VDC, No-load quiescent current: 2.7mA (at 13.8V).
• Input port: maximum input current 80 Amps, with dual 40 Amp fuses in parallel.
• Output port: 12 output ports. Factory installed 10 Amp ATO blade fuses. High-quality fuse holder, you can very easy to replace fuse from the outside, ATC/ATO auto fuses are easy to get and are available in 10 values from 1 to 40A.
• Voltage over (15.0V) and under (11.5V) LED indicators, and buzzer audio alarm for over voltage or under voltage. if you do not want to hear the alarm, you can open the aluminum case to remove the CN14 buzzer pin jumper.
• Red(+) and Black(-) colors DC input cable, length 1.5m / 5ft. Conductor section diameter 10mm square (approximately equivalent to 7AWG). 5/16 (8.4mm) ring terminals.
• Packing list: 1x F-1084A distribution module, 12x black connector housings, 12x red connector housings, 12x PVC cover flame retardant sleeve, 24x silver plated copper 30A 14-12AWG power contacts. In addition, 4 spare fuses of each type (3A, 5A, 15A, 20A, and 30A) are included to meet your various load requirements.
• Overall dimensions (maximum, w/o cables): L 298mm x W 68mm x H 40.7mm / 11.73" x 2.68" x 1.6". Weight: 790g / 27.9 oz.
• Enclosure: High quality aluminum enclosure, thickness 1.5mm / 0.06". Support screw mount, wall mount, of course can also be placed on the desktop. If you purchase together our CASE-015 DIN adapter bracket, it can also be installed on 35mm, 32mm or 15mm DIN rail.
